Power Armored Cable

Name: Power Armored Cable
Brand: ANGEL WIRE & CABLE INDUSTRIES
Price: 249 INR
Availability: InStock

249 INR/Meter

Get a Price/Quote

Product Details:

Conductor Type Stranded or solid copper conductors
No Of Core Available in 2, 3, 3.5, 4 or more cores
Temperature -15C to +90C (operation temperature)
Cable Length Customizable as per requirement
Connector Type No pre-attached connectors; suitable for lug/terminal connection
Product Type Power Armored Cable
Material Copper Conductor, Steel Armoring, PVC/XLPE Insulation
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Power Armored Cable Price And Quantity

Minimum Order Quantity 1000 Meter
Price 249 INR/Meter

Power Armored Cable Product Specifications

Conductor Type Stranded or solid copper conductors
Cable Length Customizable as per requirement
Usage Heavy-duty electrical applications, underground or outdoor installation
Voltage Surge Up to 1100V (Varies by specification)
Rated Current Varies as per cable size and core (example: 10A to 500A)
Temperature -15C to +90C (operation temperature)
Color Multi-colored inner cores, Black outer sheath
No Of Core Available in 2, 3, 3.5, 4 or more cores
Size Varies from 1.5 sqmm up to 400 sqmm
Diameter Varies as per size and no. of cores
Application Industrial, commercial, residential power grids
Frequency (MHz) Suitable for 50/60 Hz supply
Rated Voltage 600/1100V
Conductor Material High-purity Copper
Material Copper Conductor, Steel Armoring, PVC/XLPE Insulation
Function Power Transmission & Distribution
Insulation Material PVC or XLPE
Product Type Power Armored Cable
Length Standard rolls of 100m or custom length
Connector Type No pre-attached connectors; suitable for lug/terminal connection
Cable Capacity Depends on core/size, high-capacity

Halogen Free Available on request as Low Smoke Zero Halogen (LSZH)
Screening/Shields Optional, as per client/industrial requirement
Short Circuit Temperature Up to 160C (for PVC), 250C (for XLPE, short-duration)
Standards IS: 1554/IS: 7098/IEC standards as applicable
Resistance to Chemicals Yes, outer sheath resistant to oils/acids (as per specification)
Flame Retardant Rating FR or FRLS (as specified, IS compliance)
Mechanical Strength High, suitable for direct burial and harsh environments
Sheath Type Armored with galvanized steel wires/tapes for mechanical protection
Installation Suitable for fixed laying in ground, ducts, or open air
Bending Radius Minimum 12x overall diameter

Power Armored Cable Trade Information

Supply Ability 100000 Meter Per Month
Delivery Time 7 Days

Product Description

Experience the sublime reliability of our Ephemeral Best-seller Power Armored Cable, engineered with splendid copper conductors and armored with galvanized steel wires/tapes for exceptional mechanical strength. This top-ranking cable offers flame-retardant (FR/FRLS) safety, adhering to IS: 1554, IS: 7098, and IEC standards. Its outer sheath resists oils and acids, ensuring resilience in harsh environments. With customizable length, high bending radius, voltage surge resistance up to 1100V, and low smoke zero halogen (LSZH) options, this armored cable is ideal for power transmission in industrial, commercial, or residential spaces. Add to Cart for elite performance!

Versatility & Area of Application

Power Armored Cable is widely used by top manufacturing plants, electrical contractors, and infrastructure developers for heavy-duty electrical distribution. Its robust construction supports underground and outdoor installations, making it vital in power grids, refineries, mining operations, and large commercial complexes. The cable's multi-core variants simplify application in process industries, substations, and residential projects where mechanical protection and continuous performance are paramount.

Certifications & Supply Details

Every Power Armored Cable is shipped with IS and IEC certifications for quality assurance. We efficiently handle export proposals from FOB Indian ports, ensuring swift global arrival. With a tremendous supply ability of thousands of meters per month, bulk orders are fulfilled according to your proposal amount and requirements. Trust our expertise as a top exporter, manufacturer, and supplier for prompt delivery and reliable compliance.

FAQ's of Power Armored Cable:

Q: How does the armored sheath enhance the cable's durability?

A: The galvanized steel wire or tape armoring provides exceptional mechanical protection against abrasion, impact, and rodent attacks, making the cable suitable for direct burial or harsh industrial environments.

Q: What installation areas are most suitable for Power Armored Cable?

A: These cables are recommended for fixed laying in ground, ducts, open air, or industrial and commercial infrastructures requiring enhanced protection and consistent electrical performance.

Q: When is Low Smoke Zero Halogen (LSZH) material required?

A: LSZH is preferable in enclosed or public spaces-like commercial buildings or tunnels-where reducing toxic smoke and halogen emissions during fire is essential for occupant safety.

Q: What standards do these cables comply with?

A: Our Power Armored Cables comply with IS: 1554, IS: 7098, and relevant IEC standards, ensuring safety, mechanical integrity, and electrical performance as per industry regulations.

Q: What is the process for ordering and customizing cable length and core size?

A: Once your proposal amount and specifications are received, our team assists in selecting the right core size, length, and insulation. We manufacture and ship custom cables to your requirements.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Electric Wire ' category

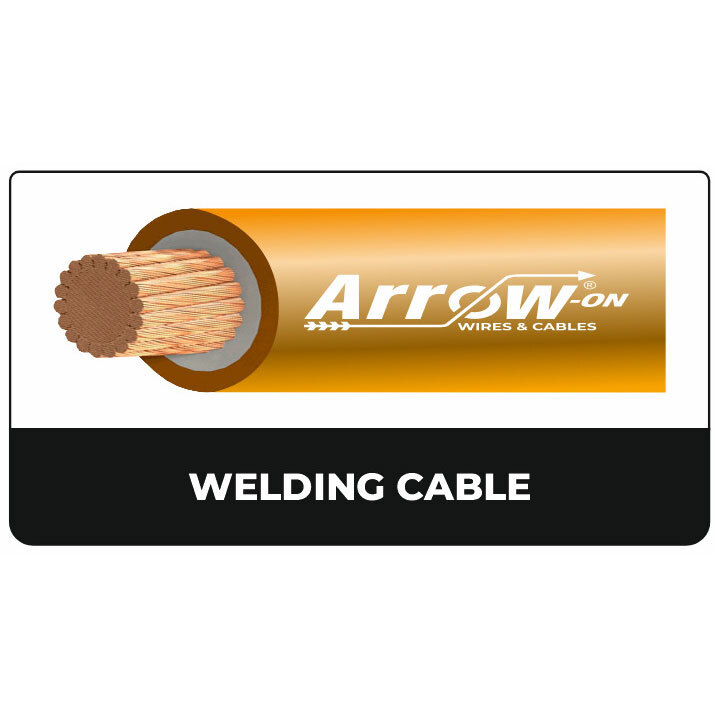

Welding Cable Price : 251 INR/Meter Minimum Order Quantity : 1000 Product Type : Welding Cable Insulation Material : PVC Material : PVC Insulated, Copper Conductor Function : Transmission of welding current Conductor Material : High Conductivity Copper Application : Arc welding, industrial and construction No Of Core : Single core Color : Standard Black, Custom colors available Voltage Surge : Upto 600V Usage : For welding machines and related industrial applications Conductor Type : Flexible, Multistranded Cable Capacity : Depends on conductor size Length : Available in custom lengths Frequency (MHz) : 5060 Hz Rated Voltage : 450/750V Diameter : As per conductor size Size : Varies (10 sq.mm to 120 sq.mm and above) Rated Current : As per cable size specification Cable Length : Standard coils of 100 meters or as required Connector Type : Cable lugs or clamps, not usually preattached Temperature : 20C to +85C

Send Inquiry

Multicore Flexible Cable Price : 201 INR/Meter Minimum Order Quantity : 1000 Product Type : Multicore Flexible Cable Insulation Material : PVC/ XLPE/ FR/ FRLS Material : Copper (Conductor), PVC/XLPE (Insulation) Function : Transmission of electrical power/signals Conductor Material : High conductivity annealed copper Application : Control panels, industrial wiring, solar DC connections No Of Core : 2 Core, 3 Core, 4 Core up to 61 Core Color : Red, Black (other colors available on request) Voltage Surge : Up to 1100V Usage : Wiring in machines, appliances, panels, solar DC applications Conductor Type : Stranded/Flexible, multistrand Cable Capacity : Multiple Cores (options from 2 to 61 cores) Length : Available in coils of 100 meters or as per requirement Frequency (MHz) : 5060 Hz Rated Voltage : 300/500V or 450/750V (as per specifications) Diameter : Varies with core and size (e.g. 5mm 30mm+) Size : Range available from 0.5 Sq.mm to 50 Sq.mm Rated Current : Depends on cable size (typically 5A to 25A) Cable Length : Standard lengths: 90 m, 100 m, 500 m, customizable Connector Type : Plain ends or as per requirement Temperature : 15C to +70C (operation), up to +105C (max embellished grade)

Send Inquiry

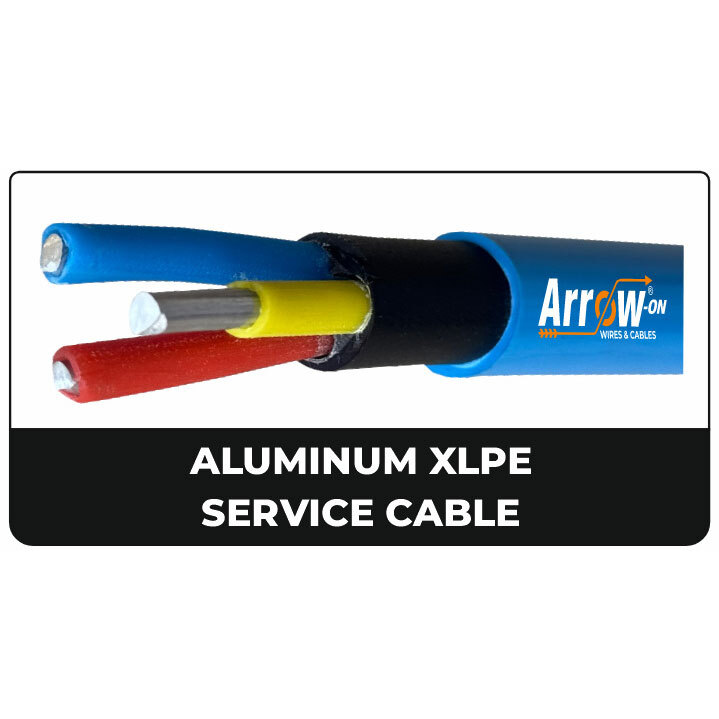

Aluminum Xlpe Service Cable Price : 150 INR/Meter Minimum Order Quantity : 1000 Product Type : Aluminum XLPE Service Cable Insulation Material : XLPE (Cross Linked Polyethylene) Material : Aluminum, XLPE (Cross Linked Polyethylene) Function : Electrical Power Distribution Conductor Material : Aluminum Application : Service entries, overhead or underground power supply No Of Core : 1, 2, 3 or 4 core options Color : Blue, Red, Yellow (as per phase identification) Voltage Surge : Withstands standard voltage surges as per IS/IEC standards Usage : Residential, Commercial, and Industrial Power Transmission Conductor Type : Stranded/solid aluminum conductor Cable Capacity : Varies by crosssectional area Length : Available in customized lengths Frequency (MHz) : 50/60 Hz Rated Voltage : Up to 1100 Volts Diameter : Depends on cable size and core count Size : Varies as per requirement (e.g., 4mm2, 6mm2, etc.) Rated Current : Depends on size and application Cable Length : Standard rolls or customized on order Connector Type : Lug or clamp compatible Temperature : 15C to +90C (operational range)

Send Inquiry

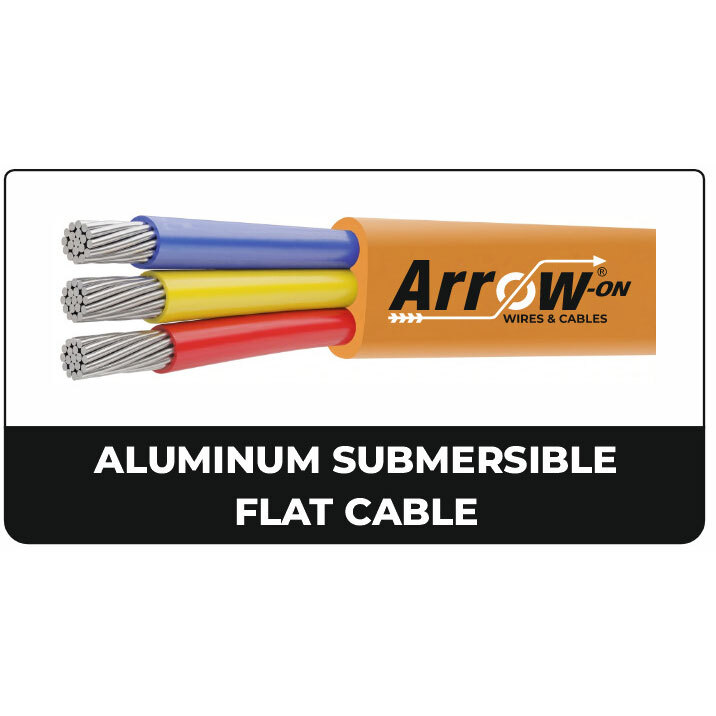

Aluminum Submersible Flate Cable Price : 150 INR/Meter Minimum Order Quantity : 1000 Product Type : Aluminum Submersible Flat Cable Insulation Material : PVC Material : Aluminum Function : Power transmission for submersible pumps Conductor Material : Aluminum Application : Suitable for submersible pumps, agriculture, irrigation, industrial use No Of Core : 3 Core Color : Red, Yellow, Blue insulation with Orange sheath Voltage Surge : Up to 1100 V Usage : Submersible pumps, underwater electrical connection Conductor Type : Stranded aluminum Cable Capacity : Depends on crosssectional area; typically 1.5 sqmm to 16 sqmm Length : Available in custom lengths (typically coils of 100m to 500m) Frequency (MHz) : 50 Hz Rated Voltage : 1100 V Diameter : Flat cable (height and width varies by core size) Size : Varies (commonly 2.5 sqmm, 4 sqmm, 6 sqmm, 10 sqmm, 16 sqmm) Rated Current : As per IS standards, varies with cable size Cable Length : 100 meters, 200 meters, 500 meters (as per requirement) Connector Type : Bare conductor (requires crimping or connecting terminals) Temperature : 15C to +70C
